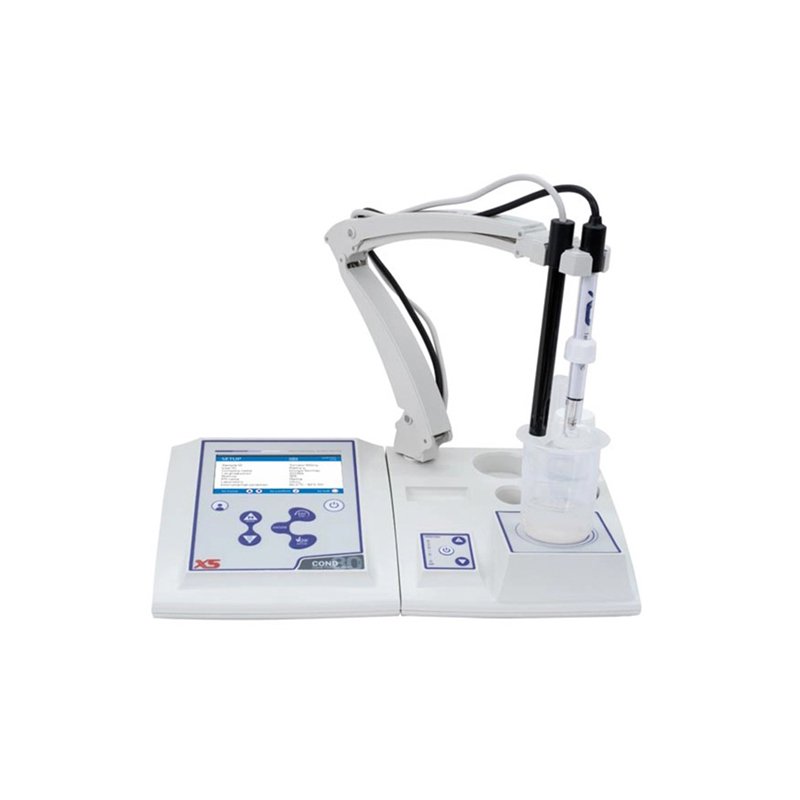

An advanced benchtop conductivity meter for the accurate measurement of conductivity, salinity, TDS, and resistivity.
Engineered for laboratory and production environments, this device combines precision, traceable calibration and intuitive operation with full GLP data logging. Ideal for quality-control testing, process monitoring and research applications.
Delivers outstanding analytical performance through a large 4.3″ colour TFT display and multilingual interface. Automatic calibration up to four points ensures reliable accuracy, with selectable cell constants (0.1 / 1 / 10 / 0.55 for 4-ring cells) covering ultra-pure to highly-conductive solutions. Temperature compensation is automatic or manual, operating from 0 to 100 °C with ± 0.2 °C accuracy.
The system records up to 8 000 GLP entries, with data export via USB (B-type) or RS-232 using the free DataLink+ software. Advanced user management provides four access levels and fifteen profiles to ensure audit-ready traceability, while calibration alarms and electrode-status indicators maintain consistent measurement integrity.
Compact IP54-rated housing makes this benchtop meter ideal for continuous laboratory or production-line use.
Download your DataLink+ SoftwareKey Features
- Measurement parameters: Conductivity, TDS, Salinity, Resistivity, Temperature
- Conductivity range: 0.00 µS – 1000 mS (automatic scale)
- Accuracy: ± 0.5 % full scale
- Resolution: 0.01 / 0.1 / 1 µS cm⁻¹ (automatic)
- Calibration: Automatic 1–4 points + 1 user value (84, 147, 1413 µS, 12.88 mS, 111.8 mS)
- Cell constants: 0.1 / 1 / 10 / 0.55 (2-ring and 4-ring cells supported)
- Temperature range: -30.0 to +130.0 °C (± 0.2 °C)
- Temperature compensation: Auto / Manual (0–100 °C, 0.00–10.00 % / °C)
- Display: 4.3″ backlit colour TFT with multilingual menus (EN, IT, DE, FR, ES, PT)
- Data logger: Up to 8 000 GLP records, exportable via USB or printer
- User management: 4 access levels / 15 profiles with password protection
- Connections: USB (B) for PC, RS-232 for printer, BNC and Multipin for cells
- Protection: IP54 housing for laboratory environments
- Power supply: 100 – 240 V AC adapter (12 V / 1 A)
Applications
- Laboratory and QA/QC conductivity measurement
- Water quality testing and process validation
- Salinity and TDS analysis in food and beverage production
- Calibration of cleaning and rinse water monitoring systems
- Industrial process and environmental testing
- Research and educational laboratories
